Disassembly and Cleaning

View Entire Thread

Return to Threads
SHARE
  by Bill Degnan - 10/30/2015 08:47

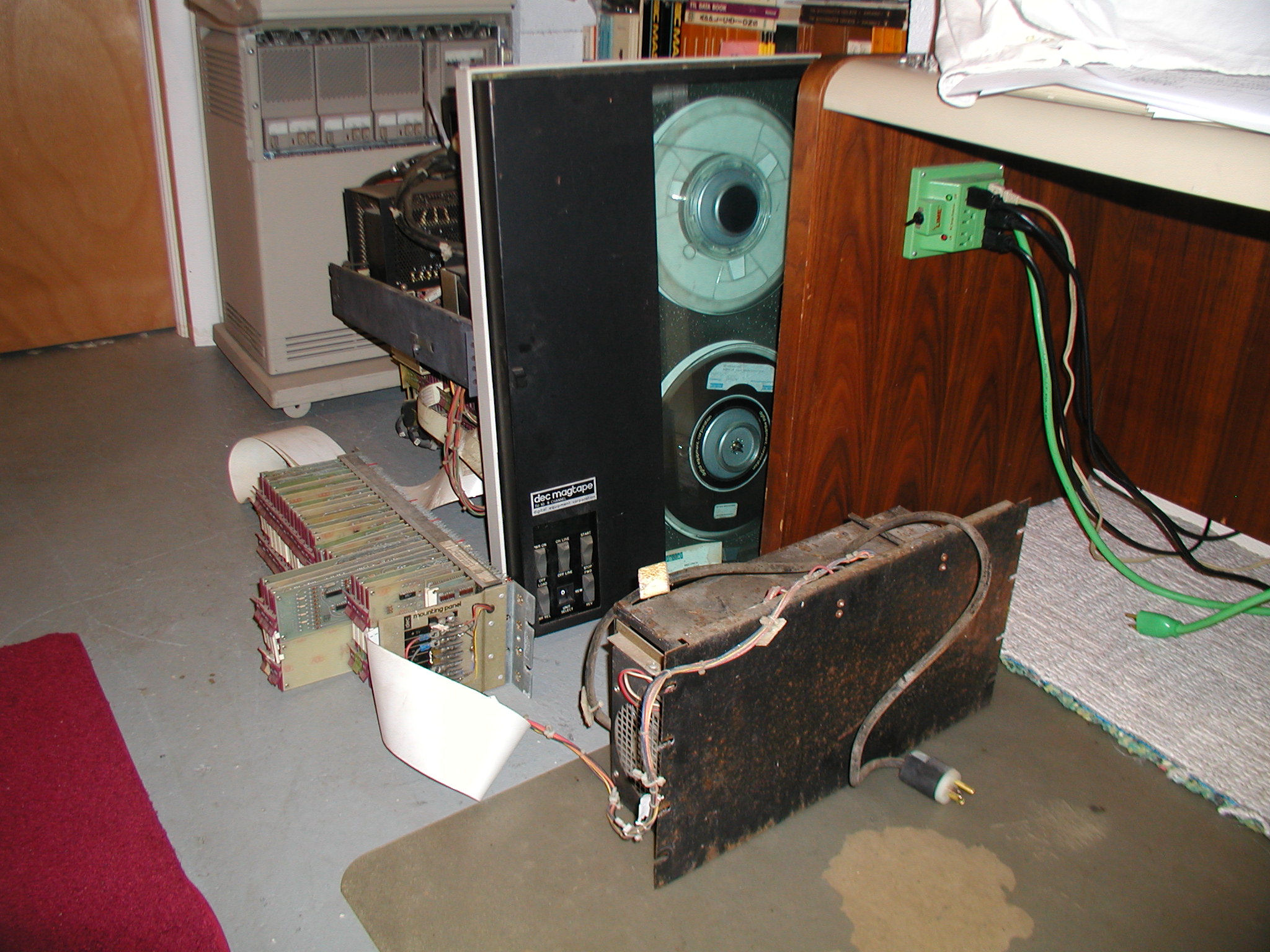

Digital TU10 Controller backplane removed
The TU10 and backplane have been removed from the rack and placed carefully on the floor for cleaning.

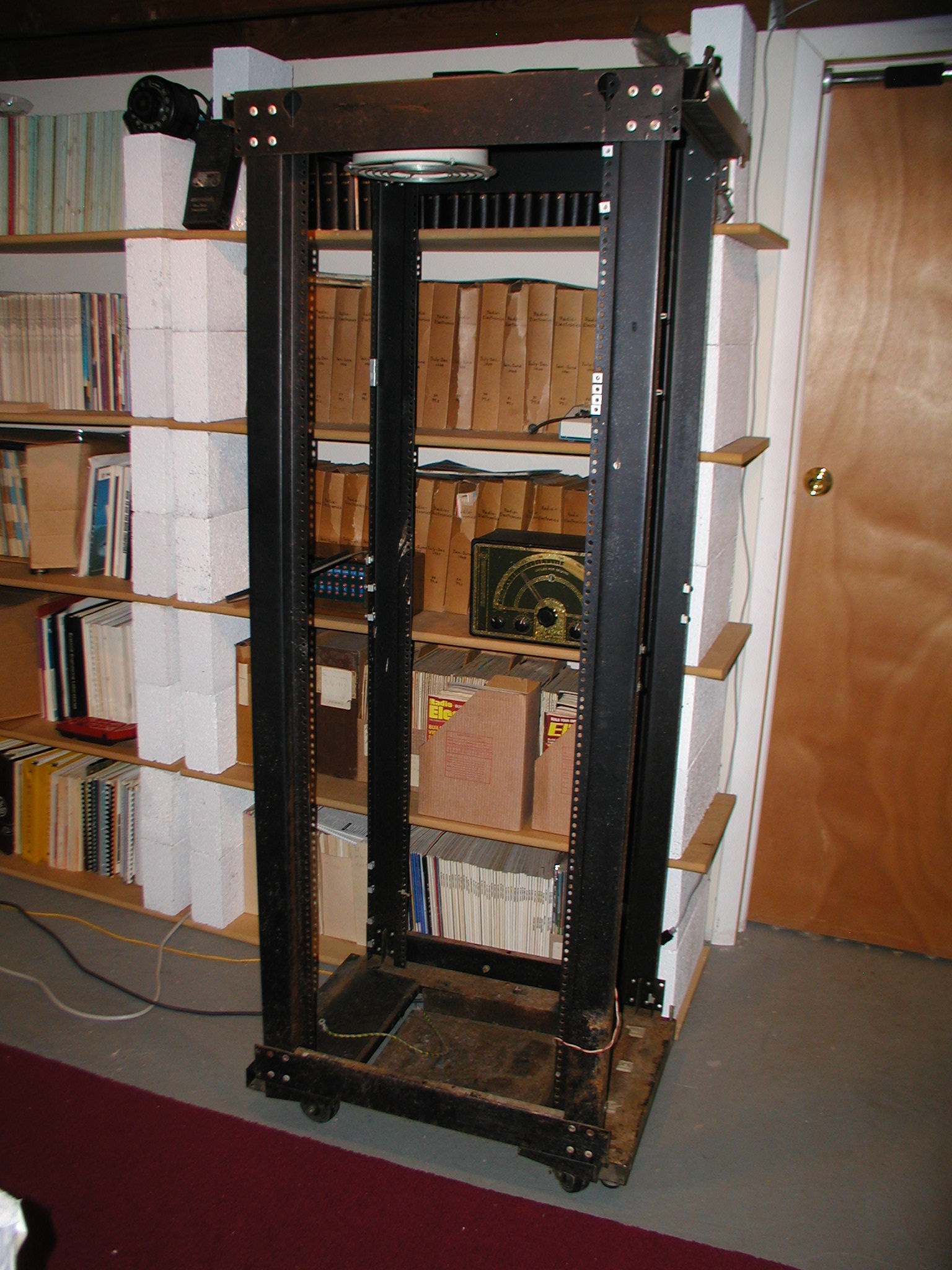

TU10 Rack
Bare Rack with all components and doors removed.


The TU10 has been successfully disassembled and moved into the clean basement for further restoration.

Pic 1

Pic 2

Pic 3 (thumb above)

Pic 4

Pic 5
