Magnavox Mystery - Binary Counter?


Can you identify this unit?

Take a look at the pictures below and see if you can identify this device. As you can see there is a light display on the cover which indicates a binary progression from 1 (20) to 32768 (215)

Is this a home brew binary counter of some sort? When was it manufactured? Click here to enter your comments.

Blinking Lights?

Housed in a box with "Magnavox" on the lower front corner and measuring 12" x 5" x 5" (30.48cm x 12.7cm x 12.7cm), this tightly packed assemlage of components performed a function I cannot identify. The most interesting thing about this unit is the set of front panel lights, numbering 1 through 32768, the first 16 powers of 2, if you count 20. On the underside of the box is the ID label, but I cannot quite read the handwriting. On the back are two RCA jacks, a reset button (?), and an AC power cord.


ID Label: Pasted on the bottom of the box. What does this say? Click Image for larger version.
Click Here for blown-up version



Cover Removed: Click Image for larger version.



Rear View: Note the two RCA jacks, reset (?) button, and AC power cord. Click Image for larger version.



Top View (Lights pointing up) Components: Click Image for larger version.



Front View Components: Click Image for larger version.



Rear View Components: Click Image for larger version.

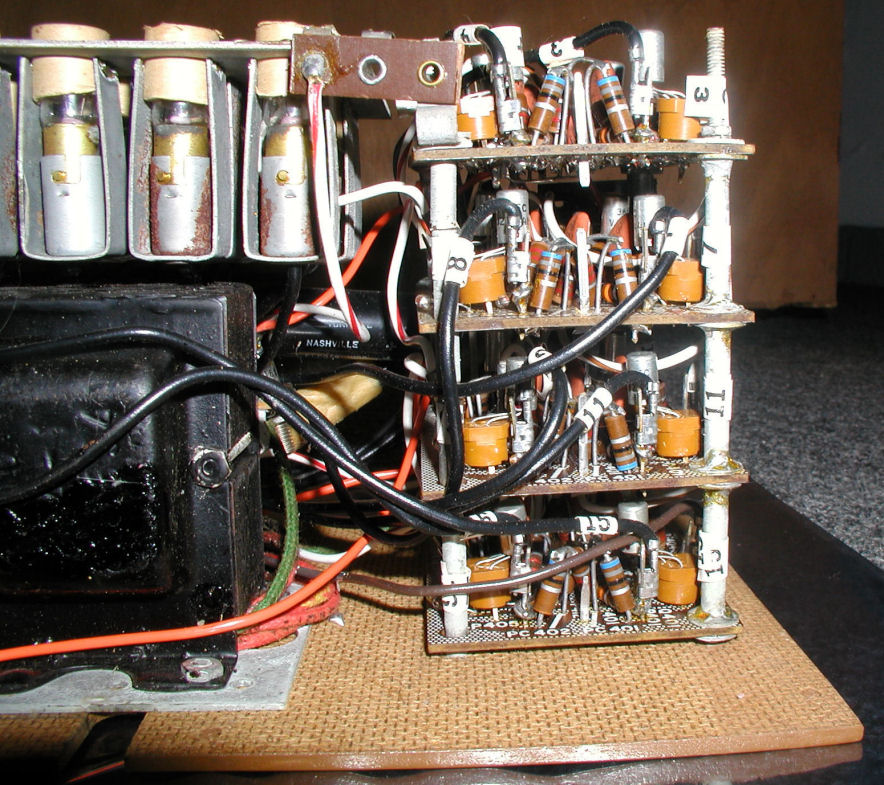

Rear View, Right Components: Click Image for larger version.



Rear View, Left Components: Click Image for larger version.



Front View, Right Components: Click Image for larger version.
