Epson HOOAAG adapter for HX-20 and PX-8

Power supply

type plate

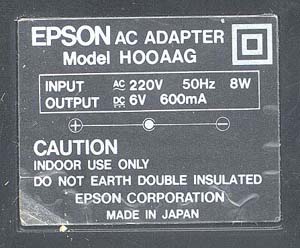

The type plate of the HOOAAG adapter.

schematic

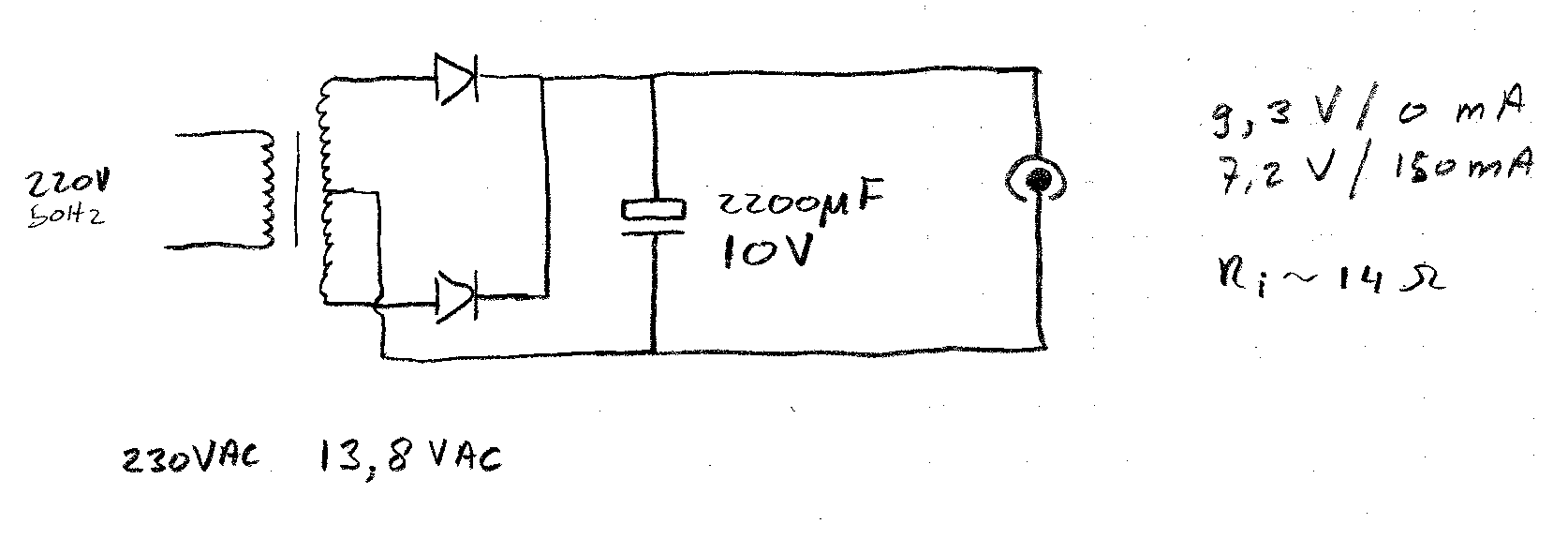

Internal schematic of the HOOAAG. 6V 600mA does not mean a constant voltage of 6 volt, but 6 volt at a current of 600 mA.

The HX-20 and PX-8 both have a four cell battery. For charging four C-type cells in series in a reasonable time, you need a higher voltage than 6 volt. The HOOAAG delivers 9.3 volt with no computer connected, and 7.2 volt when charging a HX-20 with 150 mA. Any generic wall wart adapter will work, but make sure the maximum current is about 600mA and the polarity is correct (pin is minus, barrel is plus). Original plug dimensions are 2.0x5.5mm.

The HOOAAU-A is the 240V variant of the power supply.

Charging characteristics

The HX-20 has a very simple charging circuit. Only a diode and a 3.9 ohm resistor are between power supply and battery. The manual specifies 8 hours for a full recharge, which the user has to check.

The PX-8 is somewhat more advanced and switches from full charge (150-200mA) to trickle charge (40mA) after a fixed period. This period is 11 hours when the power switch is in the ON position, and 8 hours when it is OFF. The PX-8 has the ability to monitor the battery voltage, but this is not used by the charge circuit, which includes the 7508 sub-processor.

I have no technical documentation of the PX-4, but assume it operates similar to the PX-8. Charging however, is only used for the battery pack, not for the penlight cell option.

CHARGE BATTERY!

All Epson portables depend on the battery. It is possible to use the machines with no battery installed, but only without power-hungry pheriperials like micro-cassette and printer. When accessing these devices, the voltage will drop below the minimum voltage and the machine will switch off, displaying CHARGE BATTERY! on the screen.

If the battery has failed, you can replace the old bulky and expensive C-cell type with a cheap modern NiMn penlight cell set. These have similar or even greater capacity so the standard charging circuit will work. A potential drawback is the larger self-discharge; so it will deplete itself faster than the standard NiCd set.

Variations

Epson AC adapter H00AAA. Standard in the USA and Canada. 110V.
Epson AC adapter Standard in large parts of Europe. Has an integrated 'Type C CEE 7-17' connector, making it compatible with most European AC contacts. Designed for 220V. The 'Type C CEE 7-17' has a dummy ground contact.
Epson AC adapter Standard in large part of Europe. Has an integrated 'Type C CEE 7/16' or (Europlug), making it compatible with most European AC contacts. Designed for 220V.
Epson AC adapter Standard in the UK and Ireland, as it is specified for 240V. Has two wires.
Epson AC adapter Standard in the UK and Ireland, as it is specified for 240V. Has two wires. The AC wire has a plug fitting instruction label attached.

Latest update: 2012-01-20
