CUBIT is a Eurocard sized (100 x 160 mm) microprocessor module with four main functions.
As an extension card to 6502-based computers, particularly the Rockwell AIM 65, adds 4K bytes of RAM memory plus a socket for a 2K or 4K byte ROM or EPROM. This socket can be arranged to take a further 2K bytes of RAM memory. It also provides a VIA (6522) input/output chip giving 20 i/o lines via a 26 way ribbon cable connector, and a 64-way DIN connector (which can take a 64-way ribbon cable) for connection on to the Acorn standard computer bus. This gives the user access to all the Acorn and Control Universal computer cards.
As a interface between 6502-based computers and the Acorn and Control Universal range of computer cards, which includes VDU cards, memory cards, PROM programmer, floppy disk controller and many more.
As a stand-alone single board computer. All the facilities described above are available, and the CU-KEY QWERTY keyboard and CUBOS operating systom, described separately in this catalogue, complete its usefulness as an independent computer. See also the section on the industrial Control Unit which allows the use of BASIC with CUBIT.
As a memory and i/o extension. When plugged into the data bus without a 6502 on board, all the facilities of and i/o can be accessed from the host computer.
The mark 5 version of CUBIT, which is the current issue, incorporates a 555 timer chip which provides power-on restart. This improves the usefulness of the card, especially as a single board controller. Fuller details can be found in the user manual on CUBIT, available without charge from Control Universal or your CUBIT dealer.

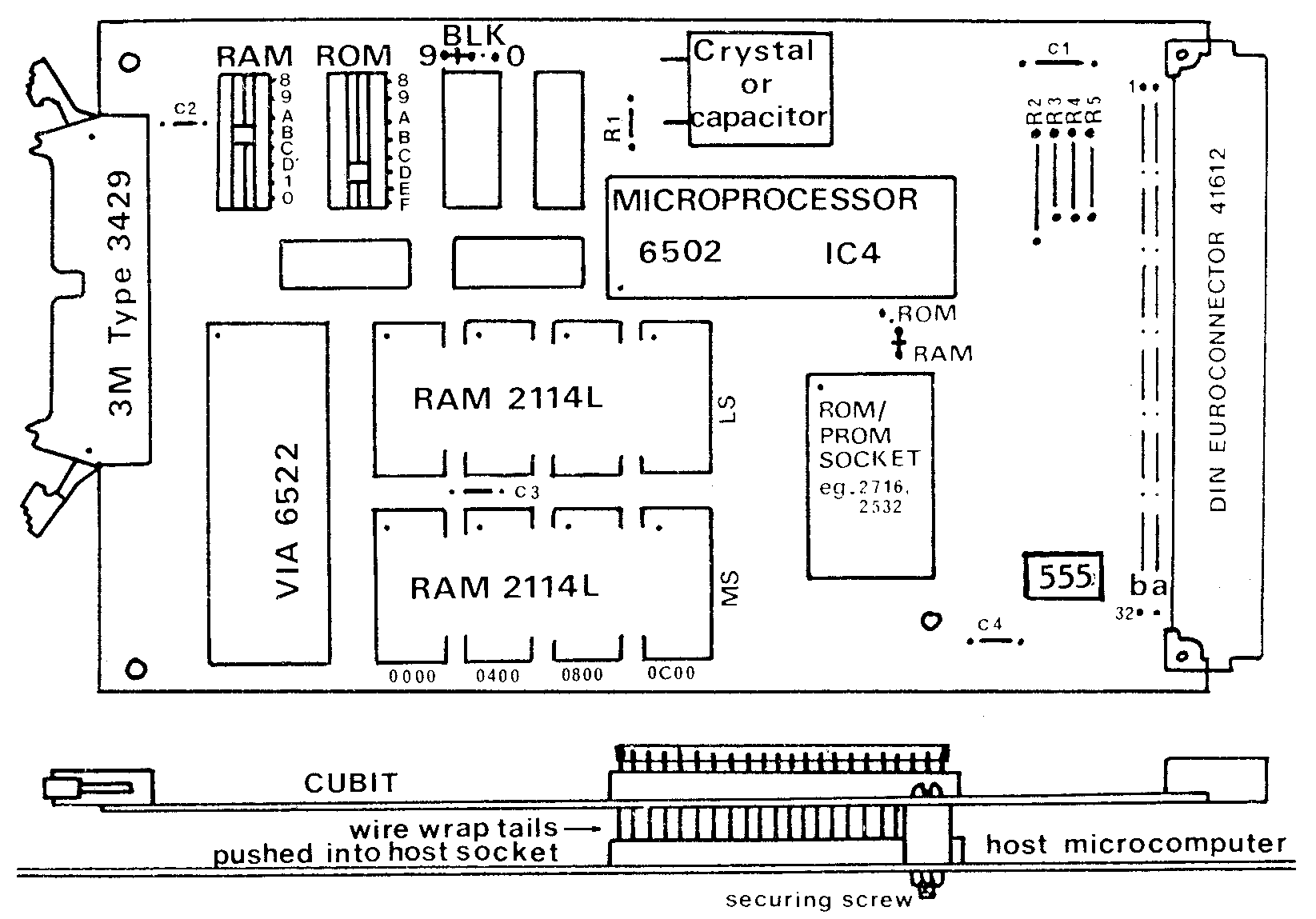

This version has wire-wrap tails on the microprocessor socket to allow it to be plugged into the micro socket of the host computer. No 6502 or crystal is supplied, but in place of the crystal a capacitive oscillator is fitted, which allows the card to operate as a stand-alone computer simply by fitting the 6502 chip. This arrangment runs nominally at 1MHz, but does not have the accuracy of a crystal.
600A COMPLETE ASSEMBLED & TESTED WITH 4K RAM 70.00 600K COMPLETE WITH 4K RAM IN KIT FORM 55.00 600D COMPLETE ASEMBLED & TESTED WITH 0K RAM 59.00 600K KIT OF PARTS WITHOUT RAM OR 6522 (i/o CHIP) 44.00
605A COMPLETE ASSEMBLED AND TESTED WITH 4K RAM 79.00 605 COMPLETE ASSEMBLED AND TESTED WITH 1K RAM 70.00 605K KIT OF PARTS WITH 1K RAM 55.00 607 ASSEMBLED & TESTED WITHOUT RAM OR 6522 (i/o CHIP) 54.00 608 BARE PRINTED CIRCUIT BOARD ONLY 25.00 1214 4K EPROM WITH "CUBOS" OPERATING SYSTEM FOR CUBIT (see page 1.3) 25.00

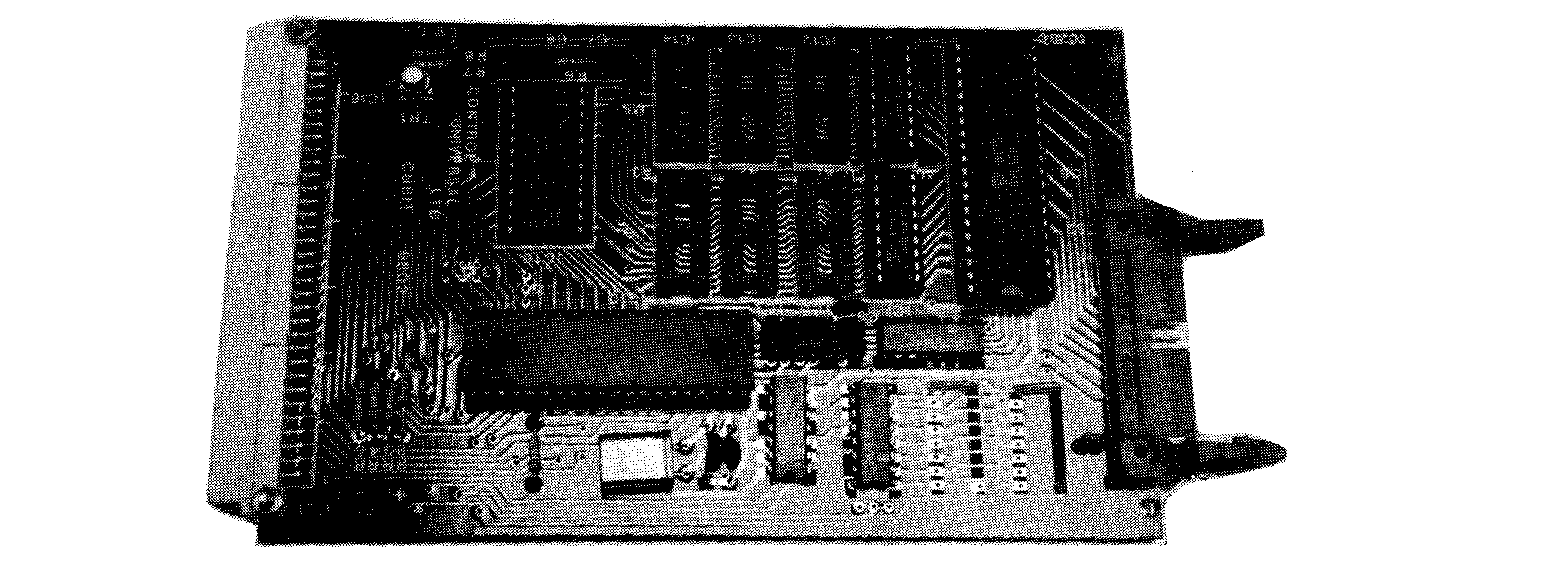

CUNINE is part of the same family as CUBIT, and features a similar arrangement, of crystal controlled microprocessor, provision for 4K of RAM using 2114L chips, a 6522 providing 20 i/o channels, a socket for a 2K or 4K ROM or EPROM, with a data bus connection to the Acorn standard, so ensuring full compatibility with the entire Acorn and Control Universal range.
Fuller details in the user manual on CUNINE, available without charge from Control Universal or your CUBIT dealer.
code description price 585A COMPLETE ASSEMBLED AND TESTED WITH 4K RAM £89.00 585 COMPLETE ASSEMBLED AND TESTED WITH 1K RAM £80.00 585K KIT OF PARTS WITH 1K RAM £65.00 588 BARE PRINTED CIRCUIT BOARD ONLY £25.00

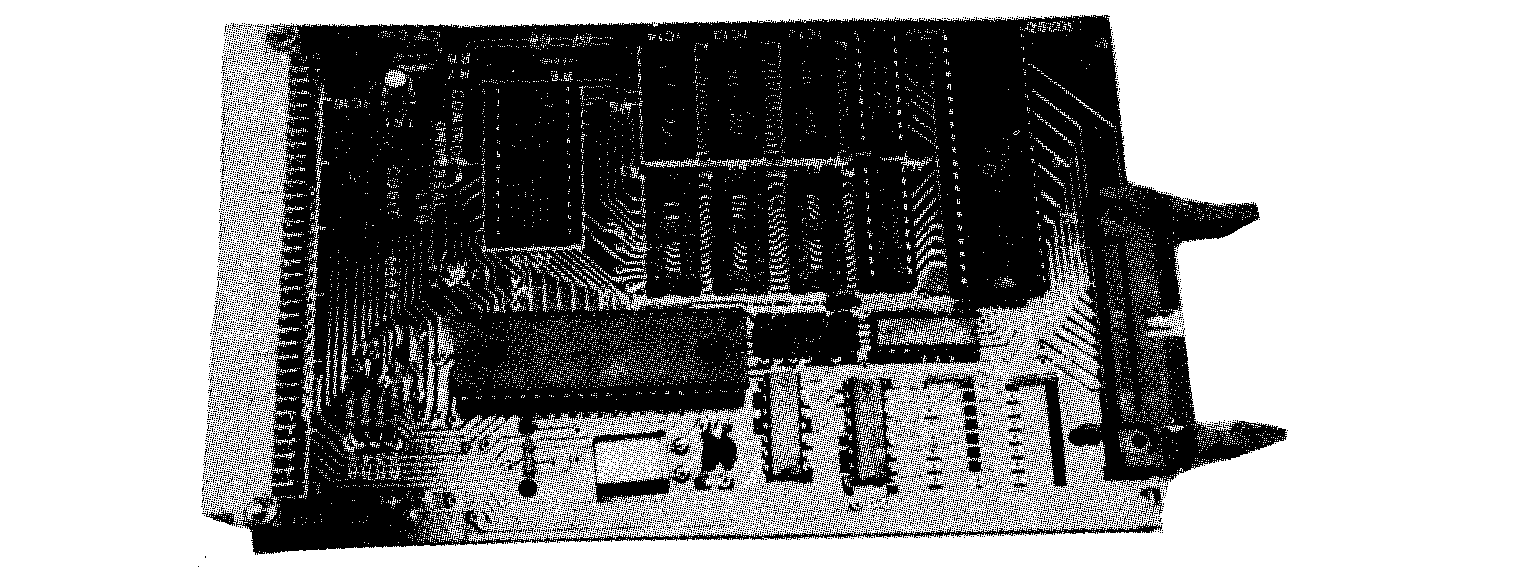

CUMOT is part of the same family as CUBIT, and features a similar arrangement, of crystal controlled microprocessor, provision for 4K of RAM using 2114L chips, a 6522 providing 20 i/o channels, a socket for a 2K or 4K ROM or EPROM, with a data bus connection to the Acorn standard, so ensuring full compatibility with the entire Acorn and Control Universal range.
Fuller details in the user manual on CUMOT, available without charge from Control Universal or your CUBIT dealer.
code description price 645A COMPLETE ASSEMBLED AND TESTED WITH 4K RAM 79.00 645 COMPLETE ASSEMBLED AND TESTED WITH 1K RAM 70.00 645K KIT OF PARTS WITH 1K RAM 55.00 648 BARE PRINTED CIRCUIT BOARD ONLY 25.00

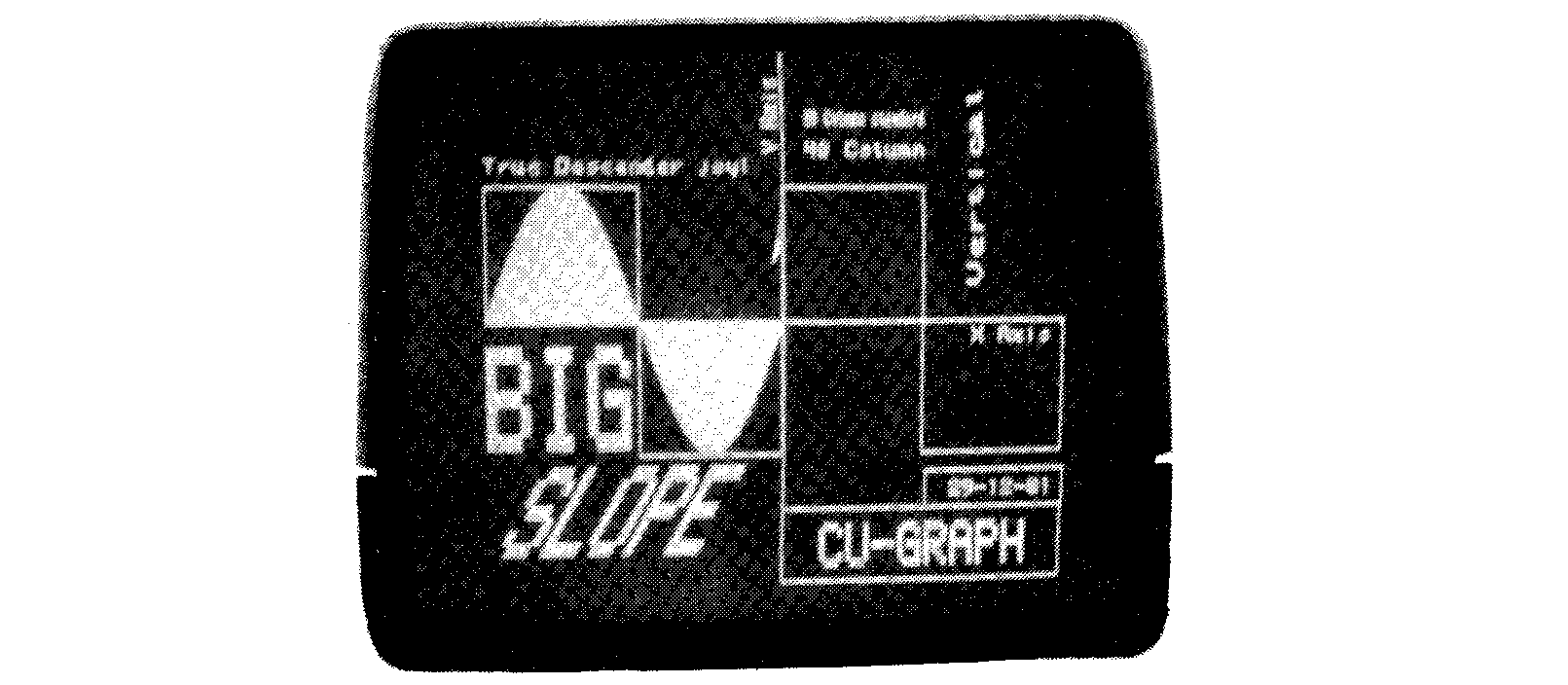

Cubit and Acorn compatible graphics card, 8 colours in 512 x 256 pixels.
Uses the EF9366 graphics processor chip. Each plane of colour (red, green, blue) displays 16K bytes of memory, giving 512 x 256 resolution; each pixel can be red, blue, green, white, yellow, cyan, magenta or black.
Only 256 bytes of the host computer memory are used, all 48K bytes of screen memory being on the memory map of the EF9366 only.
Text display can be superimposed on graphics, and can be up to 85 columns by 32 rows, using an on board generator of 96 standard characters. Each character can be scaled for height, width, slope, and orientation, all independently.
The user can define his own character set without restriction and can also, by defining a picture display unit as something larger than a single pixel (eg. 4 pixels wide by 2 pixels high) obtain a vastly increased palette of available colours, although at reduced resolution.
The EF9366 also permits fast hardware vector generation and light pen user input. The CU-GRAPH memory can be interrogated by the computer for output to monochrome or colour printers.
Outputs are provided as RGB and sync. CU-GRAPH is constructed as two boards called CU-GRAPH-mono and CU-GRAPH-extension, together they are referred to as CU-GRAPH-full colour. CU-GRAPH-mono is a Eurocard using the standard Acorn data bus and carries the EF9366 processor, address decoding and the 16K bytes of dynamic RAM required for full graphics resolution in monochrome. There is also an output suitable for driving a bleeper to provide a BELL signal so completing the use of CU-GRAPH as a terminal. CU-GRAPH-extension is a similar sized board mounted piggy-back on CU-GRAPH-mono. It carries the further 32K bytes of dynamic RAM necessary for 3 planes of colour at full resolution, plus a centronics type printer interface and 26 way ribbon cable connector.
Driver software for use on Acorn and Cubit systems is available now, together with a high resolution graphics version of Acorn Atom BASIC.
CODE DESCRIPTION PRICE 590 CU-GRAPH-mono assembled and tested 180.00 591 CU-GRAPH-extension assembled and tested 180.00 592 CU-GRAPH-mono in kit form 160.00 593 CU-GRAPH-extension in kit form 160.00 594 CU-GRAPH-full colour assembled and tested 360.00 595 CU-GRAPH software driving listings for use with CUBOS * 10.00 596 CU-GRAPH-mono PCB only 40.00 599 CU-GRAPH-extension PCB only 40.00
* supplied free with all other items on this page.

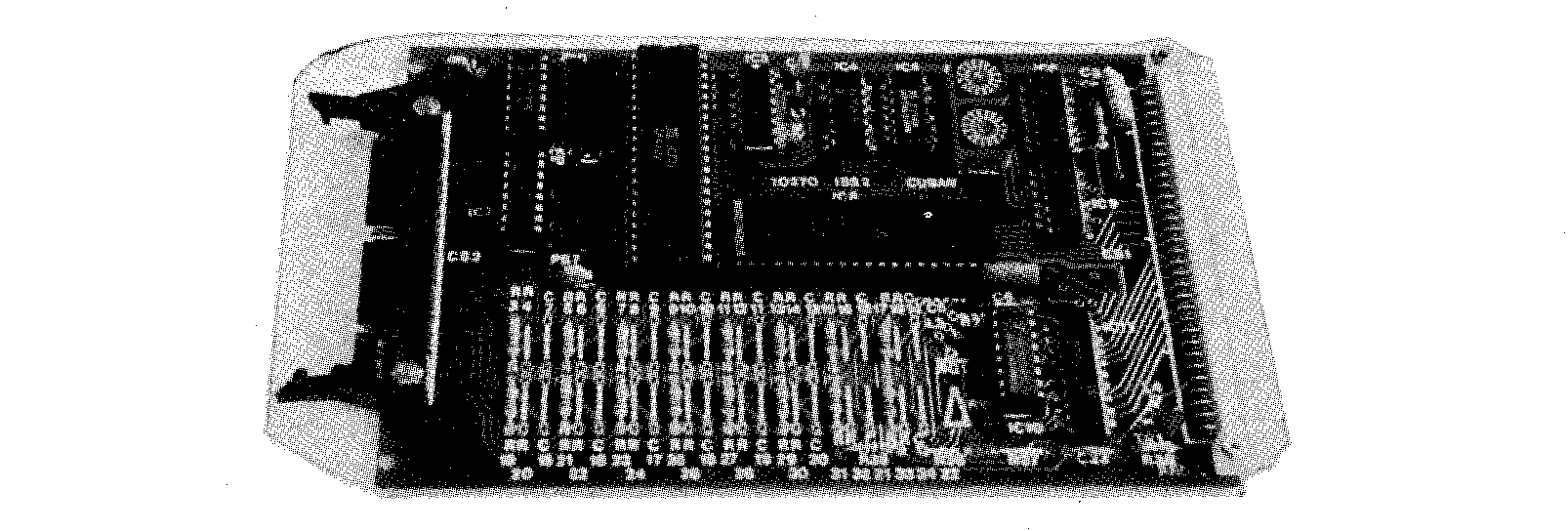

CUBAN was developed jointly between Control Universal and MEDC, Paisley College, and appeared in a series of articles written by Peter Williams, John Ferguson and Jake Stewart in Wireless World, under the series title of "Interfacing Microcomputers'.
CUBAN is a Eurocard with the standard Acorn microprocessor bus, and so can be used with all Acorn and Control Universal processor cards, and via an interface card with a range of other microcomputers such as PET, Apple, TRS80, ZX81 etc. It is particularly relevant to educational uses as it combines digital input and outputs, analogue inputs and outputs, and a means of simulating digital inputs and outputs on board.
The National ADCO817CCN has a conversion speed of 100 microseconds per channel, and can have time constants applied to each of the 16 channels individually, or to all at once, or both, and there is on-board provision to do this. The accuracy is plus/minus one bit, or, with the alternative ADCO816CCN device, is plus/minus half bit.
The Ferranti ZN425E has a conversion speed of 1 millisecond. There is provision for fitting an LM317T regulator on board, which allows the user to regulate the board supply of 5V to exactly 2.55V, thus arranging for each bit to represent 0.01V.
CODE DESCRIPTION PRICE 610 PRINTED CIRCUIT ONLY WITH MANUAL 25.00 611 ASSEMBLED AND TESTED WITH HIGHER PERFORMANCE ADCO816 140.00 612 ASSEMBLED AND TESTED WITH STANDARD ADCO817 120.00 614 KIT OF ALL PARTS WITH ADC0817, PLUS MANUAL 90.00

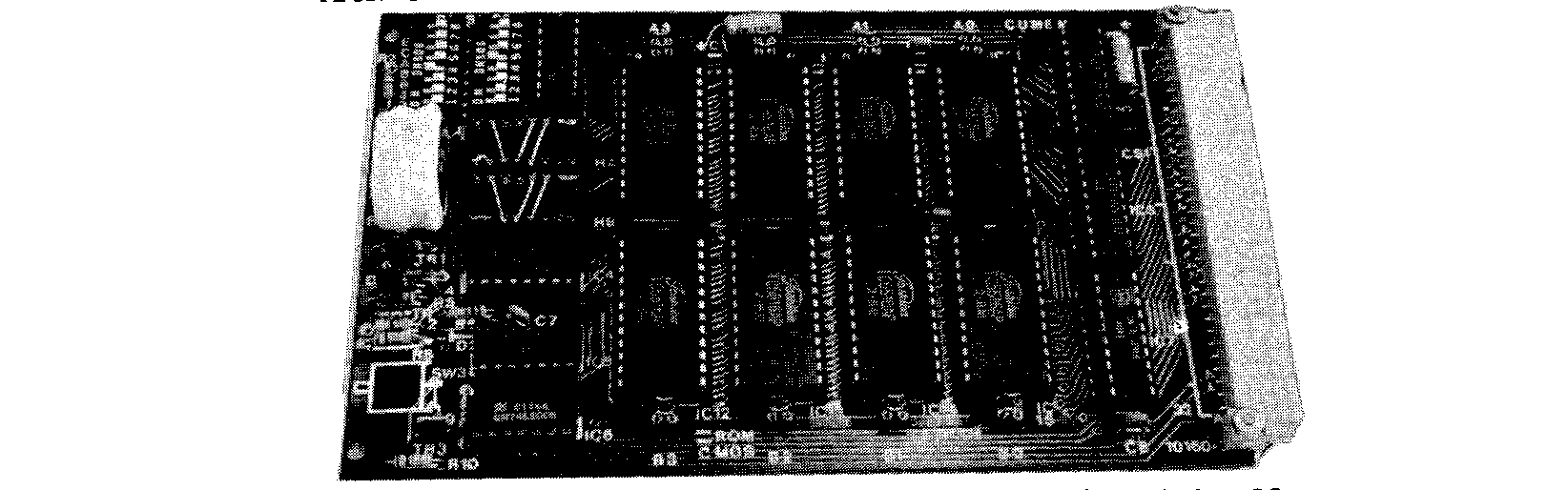

CU-MEM is a Eurocard using the standard Acorn bus, with eight 28 pin sockets,
each of which can take the industry standard range of 24 and 28 pin memory
devices, offering RAM, ROM and PROM options. The sockets are arranged in two
banks, which can be individually selected for their position in memory (in 8K
divisions) and for the type of memory device used. This allows the popular
option of a bank of RAM (up to 8K) and a bank of PROM (up to 16K using the 2564
or similar).
All CU-MEMs are sold with automatic power-on reset, which both helps protect the battery-backed RAM from corruption, and gives automatic power-on start for Acorn systems which do not otherwise self-start.
Every CU-MEM also has a battery for preserving data when CMOS RAM type 5516 is used. Note that 6116 type can be used in the CU-MEM, but does not permit battery backup. The battery is trickle charged at all times that the board is supplied with its normal operating voltage of 5V, and, when fully charged, can be expected to hold up the memory for several months, The length of time of data retention is influenced by temperature, battery age, manufacturing tolerance variations of the memory chips' consumption and the number of charge/discharge cycles that the battery has gone through. When the power is lost at the mains, the voltage decays over a short period of time from 5V to 0V. As the value passes 4.5V, the CU-MEM generates a RESET on the microprocessor, thereby preventing random writing cycles which could corrupt the data.
The following are some of the types of memory that can be used on CU-MEM, many of which are offered for sale in the integrated circuit section of this catalogue, section 14.
RAM Mostek 4802 (2K bytes) Toshiba 2016 (2K bytes), 5516 (CMOS 2K bytes, suitable for battery back-up) Hitachi 6116 (CMOS 2K bytes, not suitable for battery back-up) Intel 2816 (2K bytes) ROM Rockwell 2316 (4K), 2332 (4K), 2364 (8K) EPROM Texas 2516 (2K), 2532 (4K), 2564 (8K) Intel/Mostek 2716 (2K), 2732 (4K), 2764 (8K) EEPROM Hitachi 48016 (2K)
NEW! Toshiba have announced an 8K x 8 CMOS RAM, which can be used on CU-MEM. This will provide up to 64K bytes of battery backed CMOS RAM on one card! Keep in touch with us for details.
code description price MANUAL ONLY - FREE FROM CONTROL UNIVERSAL OR YOUR CUBIT DEALER 534 CU-MEM PB ONLY, WITH MANUAL 25.00 535 CU-MEM ASSEMBLED AND TESTED, BUT NO MEMORY DEVICES 70.00 535K CU-MEM IN KIT FORM WITHOUT MEMORY DEVICES 55.00 536 CU-MEM ASSEMBLED & TESTED WITH 16K BYTES NMOS MEMORY 104.00 037 CU-MEM ASSEMBLED & TESTED WITH 16K BYTES CMOS MEMORY 132.00

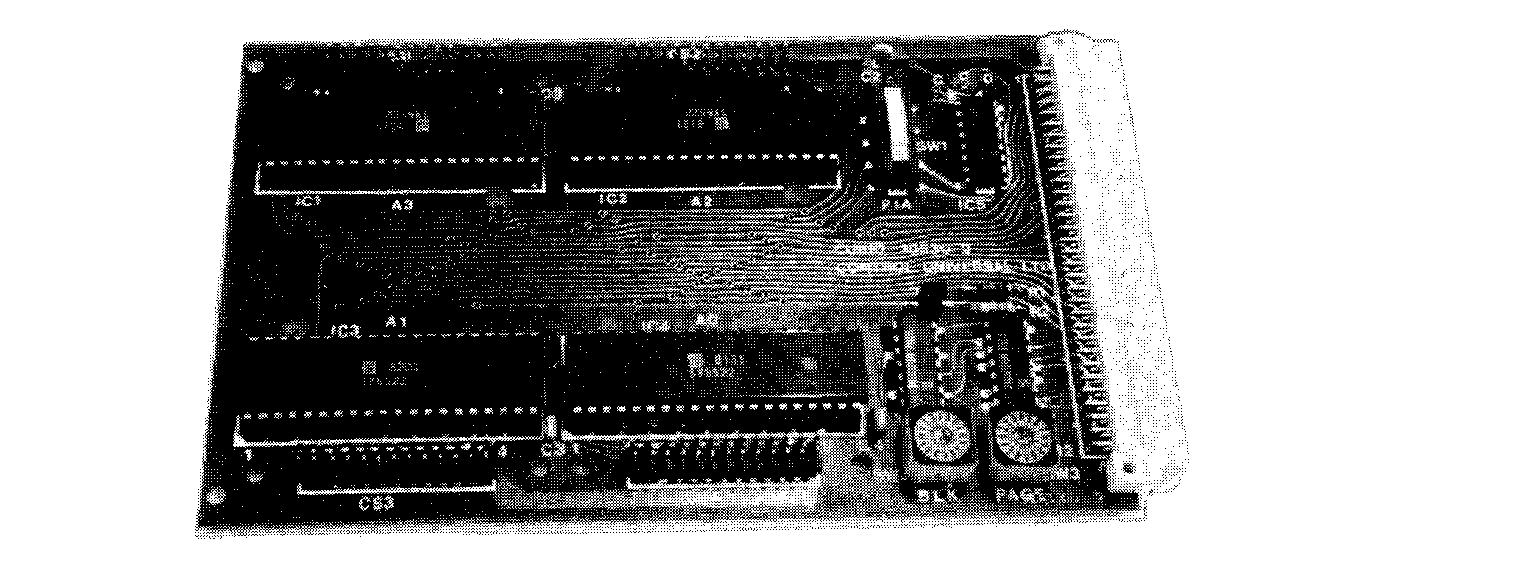

CUBIO carries four 40 pin sockets and is an exceptionally versatile unit that allows the use of either the cheaper Peripheral Interface Adaptor (PIA), which is sold as either the Rockwell 6520 or the Motorola 6821, or the more expensive but higher performance Versatile Interface daptor (VIA), which is sold as the Rockwell 6522. PIAs have 16 i/O lines, as has the VIA, but the VIA has in addition 4 control lines, which can be used as i/o, two timers, serial/parallel and parallel/serial shift registers and interrupt handling facilities.
code description price 630 PCB only with manual and circuit diagram £25 631 Fully assembled and tested with no PIAs or VIAs £45 632 Fully assembled and tested with four PIA devices £53 633 Fully assembled and tested with four VIA devices £65
CU-DRAM is a new development by Control Universal scheduled for deliveries in August 1982. It utilises eight 64K bit dynamic RAM chips to give 64K bytes. Since most microcomputers require part of their memory map to be reserved for an operating system ROM and input/output devices the card is provided with 16 switches which allow the user to de-select those areas of memory which are used for other purposes. This can be done in blocks of 4K, and may be in any combination of selected and de-selected 4K blocks. A block is defined as starting from X000 to XFFF in hexadecimal, where X is the code selected from 0 to F.
The devices used require a 5V supply only and are rated at 280ns. The board design allows the RAM to be used at more than 1MHz, and when the faster RAMs become available, the board will be able to operate at 2MHz.
In addition, CU-DRAMs can be used together, up to 16 at a time, by writing to their their board select register, which will select one out of 16 to be active. Each CU-DRAM is defined as being bank number 0 to 15 by links. By this means, CU-DRAMs can provide up to 1MByte of RAM.
There is also a 28-pin PROM/ROM socket for a 4K or 8K device into which is plugged a replacement for the host computer's firmware resident at hex F000 to FFFF. This prevents memory address clash when the board select facility is used.
code description price 670 CU-DRAM assembled and tested with 64K bytes dynamic RAM 99.00 678 CU-DRAM printed circuit board only + manual, circuit 40.00
CU-PRINT is a new development by Control Universal scheduled for deliveries in August 1982. It employs a 6522 i/o chip (VIA) with two 16 position rotary switches to provide decoding down to page (256 bytes). It can be used with all CUBE/Acorn bus systems to provide connection between the processor and a printer with a Centronics type parallel printer interface.
This card is especially useful with graphics printers as all eight bit are valid and controllable.
540 CU-PRINT printer interface assembled and tested 40.00 548 CU-PRINT printed circuit board only with circuit diagram 25.00 489 Printer interface cable to connect CU-PRINT to printer 15.00 1300 Swap service. 10.00 To use this card of Acorn systems 2, 3, and 4 the DOS chip needs a minor modification. Send your DOS chip to us quoting code 1300 and we will amend it so that CU-PRINT works with these systems.

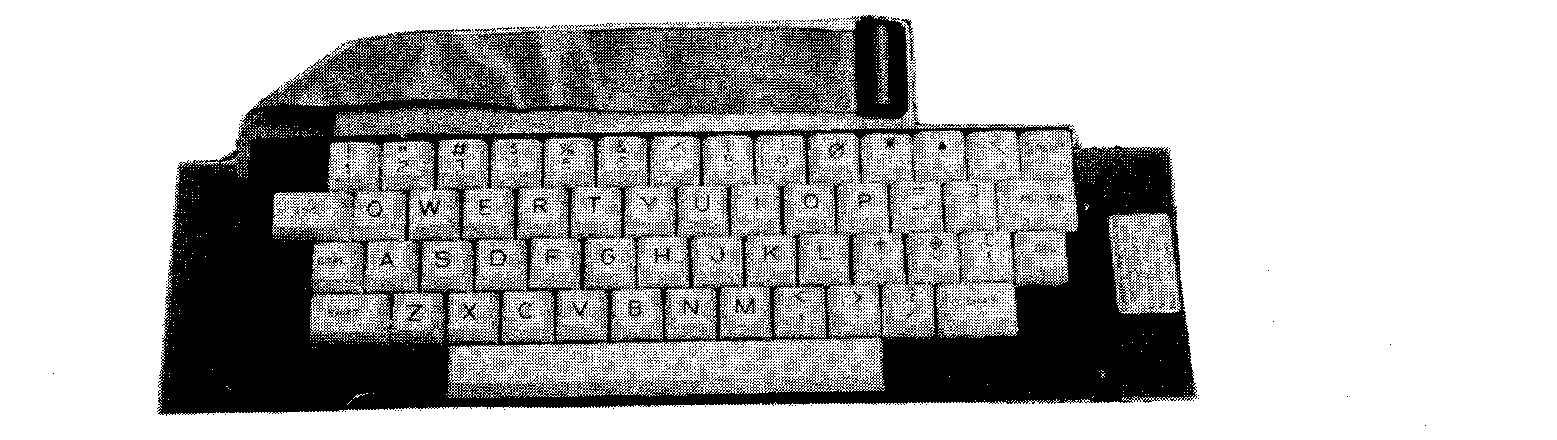

53 key non encoded keyboard (keys are decoded by polling from the operating system, each key has a place on the cross matrix) designed to plug into CUBIT, CUNINE or CUMOT single board computers. The new CUBOS operating system for the 6502-based CUBIT supports this keyboard, which, together with CU-MEM, Acorn 40 column video card and Acorn Atom BASIC make up the Industrial Control Unit described on page 1.5.
The RESET key is protected by a time delay from accidental operation. To use the RESET the key should be held down for longer than 1 second.
CU-KEY is currently sold unenclosed. A case has been commissioned and should be ready in the third quarter of 1982. It will include provision for a 25 key numeric and function keypad.
code description price 660 CU-KEY 53 KEY QWERTY KEYBOARD £40

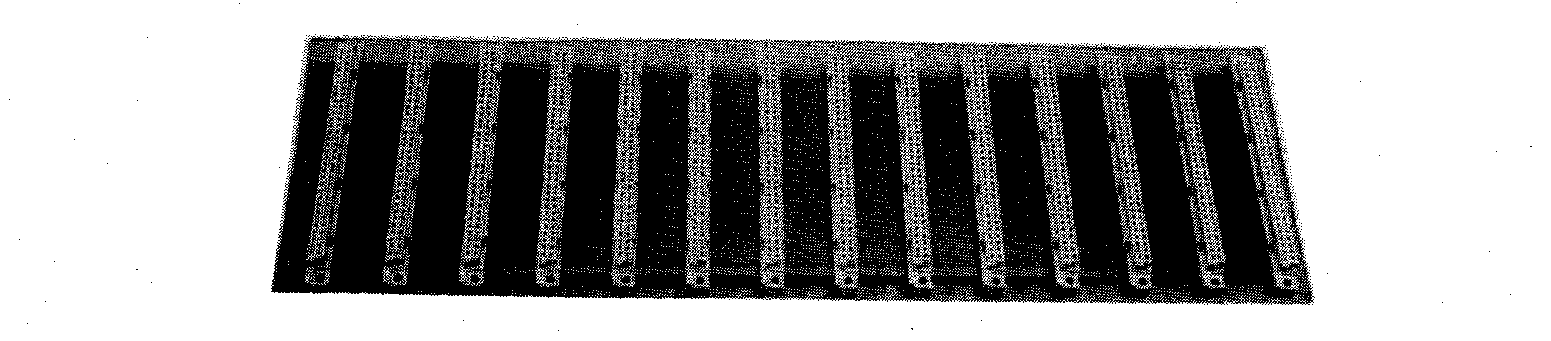

Control Universal backplanes are designed for mounting standard Eurocard DIN sockets on 1" spacing. The DIN type code is 41612, and the version is 64-way using rows a and b.
The backplane PCB provides bus connections between all of the A row pins, and between all of the b28 (IRQ), b29 (NMI) and b30 (sync) pins. Pin 19 is regarded as committed to supplying the EPROM programming voltage of 26V for use with the EPROM programmer.
CODE DESCRIPTION PRICE 954 14 Way buffered 73 953 13 " buffered 68 952 12 " buffered 63 951 11 " buffered 58 950 10 " buffered 54 949 9 " buffered 49 948 8 " buffered 44 947 7 " buffered 39 946 6 " buffered 34 945 5 " buffered 29 944 4 " unbuffered 20 943 3 " unbuffered 16 942 2 " unbuffered 11
The first socket on the backplane has long wire wrap tails, and so allows a 64 way ribbon cable to be plugged onto the back of it without the use of a bus extender card. The cable is shown on page 17.1 and allows a rack extension to be used with the AIM 65 and the Atom.

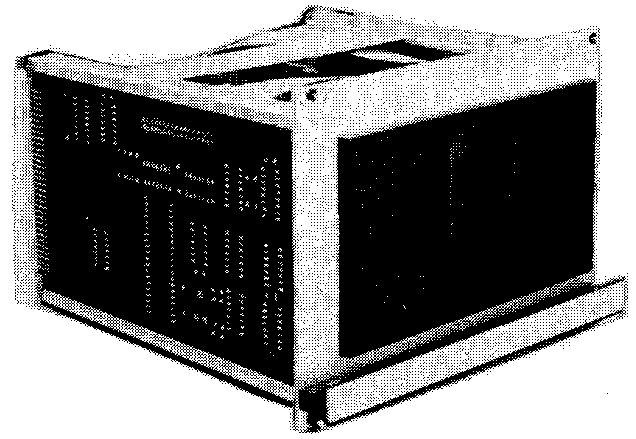

The module illustrated fits a standard 5.25" mini-floppy disk drive into a Eurorack. See the sections on Acorn System 3 and 4 for illustrations of fitting one drive into a single height rack, and two drives into a double height rack.
CODE DESCRIPTION PRICE DRIVES 770 Disk drive, single side, single density (128Kb unformatted) 195 771 Disk drive, double side, double density, 512Kbytes unformatted 250 (suitable for single density operation with Acorn controller; double density requires controller based on 8272 chip, or similar) DISKETTES 515 Box of 10 single sided 5.25" disks, 35/40 tracks, reinforced centre 22 520 Individual single sided disk, same spec as 515. 3 516 Box of 10 double sided 5.25" disks, 4 track, reinforced centre 33 521 Individual double sided disk, sane specification as 516 4 ACCESSORIES 775 Disk cable - connects controller card to drive 15 780 Disk cable for two drives - connects controller to 2 drives 25 785 Disk Mounting kit - metal trACk for disk module illustrated 15 CONTROLLERS 765 Floppy disk controller assembled and tested. 134 766 Floppy disk controller in kit form 129 DISK OPERATING SYSTEMS 796 DOS for 6502 based Acorn system 3 or 4 with 40 column VDU 60 797 DOS for Acorn Atom 60 798 DOS for 6502 based Acorn system 3 or 4 with 80 column VDU 70 807 FLEX - international standard DOS for 6809 based disk system 70 DISK OPERATING SYSTEMS FOR AIM 65 - SEE PAGE 2.16 DISK OPERATING SYSTEMS FOR USE UNDER CUBOS -SEE PAGE 1.4 UTILITIES DISKS (appropriate disk supplied free with each DOS) 808 FLEX utilities disk 10 809 Atom utilities disk 10 810 CUDOS utilities disk 10 811 AIMDOS utilities disk 10 812 Acorn system 3 or 4 utilities disk 10
The Acorn Floppy Disk Controller has its own detailed description in this catalogue, page 3.12. For manuals on all the above see section 6.

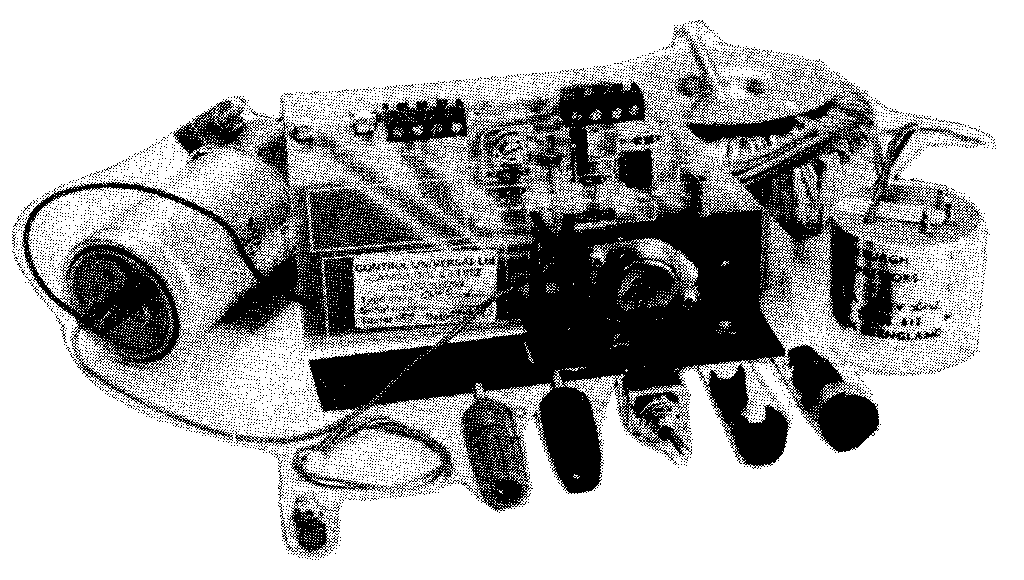

All power supplies are sold as open frame unenclosed units, fully assembled and tested. A toroidal transformer is used in all cases and a heat transfer bracket is provided. However, it is up to the customer to provide any additional heat sinking mass (eg. the chassis of the system) that may be necessary to run the power supply at its desired rating. Each unit includes mains switch, terminals, neon indicator, filter, fuses on supplies above 1A, over voltage, over current and over tenperature protection.
| CODE | 5V | 25V | 12V | ±12V | ±15V | PRICE | |
| 431 | CUPS-1 | 5A | 45 | ||||
| 432 | CUPS-2 | 5A | 0.5A | 50 | |||
| 433 | CUPS-3 | 5A | 0.5A | 2A | 58 | ||
| 434 | CUPS-4 | 5A | 0.5A | 0.1A | 58 | ||
| 435 | CUPS-5 | 5A | 0.5A | 0.1A | 58 | ||
| standard wire colour | red | white | yellow | yellow/ orange | pink /mauve |
439 Rockwell's own power supply for new enclosure 50
USES:
CUPS-1 Fully populated Atom with extensions, general purpose logic supply CUPS-2 AIM 65. 25 volt for AIM printer and EPROM programming CUPS-3 Computer system with disks eg MM with CU-ISK, Acorn system 3, 4. 25V for AIM printer and EPROM programming CUPS-4, CUPS-5 Logic supply, plus op amp and RS 232.
Some products made by Control Universal and offered in previous catalogues are no longer listed. However, some product does remain available, and in any case some items can be made to special order if the quantity justifies it. Such products include:
AIMSTART module - now listed as vector-start module on page 17.1
PROM daughter board - listed on page 17.1
DIN to DIN card - listed as bus extender card on page 3.15
CUBIT interface cable - still a current product but listed as 64-way interface cable on page 17.1
Industrial AIM enclosure. None left in stock, but enquiries for quantity will be welcomed.
Metal AIM desk top enclosure. Some currently available - please enquire.
AIM 65 blue and white plastic case now brown and white and improved in design - see enclosures section 12.
AIM 65 vacuum-formed plastic case - some second AIM 65s in plastic cases may soon be available - keep in touch.
Tangerine VDU interface for AIM 65. Not now recommended as the Acorn VDU cards and CU-GRAPH are superior. However, please enquire if this product is of special interest to you.
BASE 2 printers - deleted. No product available.
Computerist products - no longer being handled, but we still have a Memory plus in stock - see bargains page 17.1
AIM 65 magazine "INTERACTIVE" now sent free direct by Rockwell, inc., Anaheim, California, USA, to whom requests should be addressed.
The following Control Universal software represents "application routines", ie. those pieces of operating software, or "Firmware" which permit the user to employ Control Universal products in a particular computer system.
CUMEX AIM 65 monitor extension for driving video display and external Centronics type printer. It is 835 bytes long, and is specific to either the Acorn 40 or 80 column VDU interface cards, for which this is a full solution including properly executed delete routine. Execution of this program (ie. type *=GHJK {return} G {space} ) causes the CUMEX program held at hex GHJK to alter the AIM 65 ouput vector so that the output stream goes to the video and to the expansion connector for the external printer as well as to the built-in 20 column led dispay and thermal printer.
PROMER is the program for using an Acorn EPROM programer with the AIM 65. For convenience, this program is included in the same chip as the video and printer driver, which is then supplied in the same form whether for video and printer, or for the PROM programmer, or for both.
Memory Requirements:
CUMEX 835 bytes, address as below hex 9400 to 997F Acorn VDU (40 col) hex 1000 to 187F Acorn VDU (80 col) hex 9980 to 99FF Acorn PROM programmer hex A000 to A3FF AIM 65 VIA for printer i/f
The following versions of the software are available:-
1217X4 PROMER and CUMEX in a 4K EPROM at hex 8000, 40 column 10.00 1217X8 PROMER and CUMEX in a 4K EPROM at hex 8000, 80 column 10.00 1217S4 PROMER + 40 col CUMEX in 4K EPROM at choice of address 20.00 1217S8 PROMER + 80 col CUMEX in 4K EPROM at choice of address 20.00
The hex 8000 version is intended for use with the CUBIT extension to AIM 65, and in this version the PROMER is called at 8000 and the video and printer driver at 8480.
AIMDOS
Memory Requirements:
hex 0000 to 03FF RAM for AIM 65 and disk housekeeping hex 0400 to 06FF RAM for disk - based utilities hex 0700 to 0FFF RAM for disk catalogue and file handling hex 7000 to 7FFF RAM or PROM for video and printer driver and PROMER. hex 8000 to 8FFF EPROM containing disk operating system. hex 9400 to 997F Acorn VDU (40 col) hex 1000 to 187F Acorn VDU (80 col) hex A000 to A3FF AIM 65 VIA for printer interface hex F000 to FFFF EPROM replacement for AIM 65 Z22 ROM
There are four sets of firmware required with an AIM 65 disk system.
1. Code 1209 AIM 65 Z22 ROM replacement, which sets up vectors for the Acorn environment used in this system.
There is no alternative for this item. 10.00
2. AIMDOS EPROM. 4K PROM at hex 8000 to 8FFF. Price includes documentation and utilities disk.
1216SH AIMDOS EPROM as above, for Shugart drives 1216TA AIMDOS EPROM as above, for Tandon drives 1216T0 AIMDOS EPROM as above, for Toshiba drives
3. Video and printer driver with PROMER. RAM from hex 7000 to 7FFF
1208R4 Video and printer driver for AIMDOS and 40 column VDU, for use in RAM, supplied on disk free with AIMDOS. 1208R8 As 1208R4 above, for 80 column VDU free with AIMDOS. 1208P4 Video and printer driver for ATMDOS and 40 column VDU, supplied on EPROM 10.00 1208P8 As 1208P8 above, for 80 column VDU 10.00
4. Code 811. Utilities disk free with AIMDOS, otherwise 10.00
There is no alternative for this item. Includes the following:-
FORM4O COPY SEDIT LEDIT SBAS LBAS INFALL COMPACT UIO PROMERall of which are read in from disk to memory in the region hex 0400 to 06FF, except PROMER, which is from hex 7000 to 7340.
Control Universal offer two types of 80 column display - the Acorn 80 column VDU card (P 3.9), and the CU-GRAPH (P 2.5). Only one version of EDIT is required to operate on these two systems, as shown below
1306 EDIT for system 2, 3 or 4 for use with 80 column VDU card or for use with Systems 10 - 25 and CU-GRAPH 40.00
See page 4.6 for other version of EDIT (text processor) and Wordpack, and also under BBC for Wordwise.
